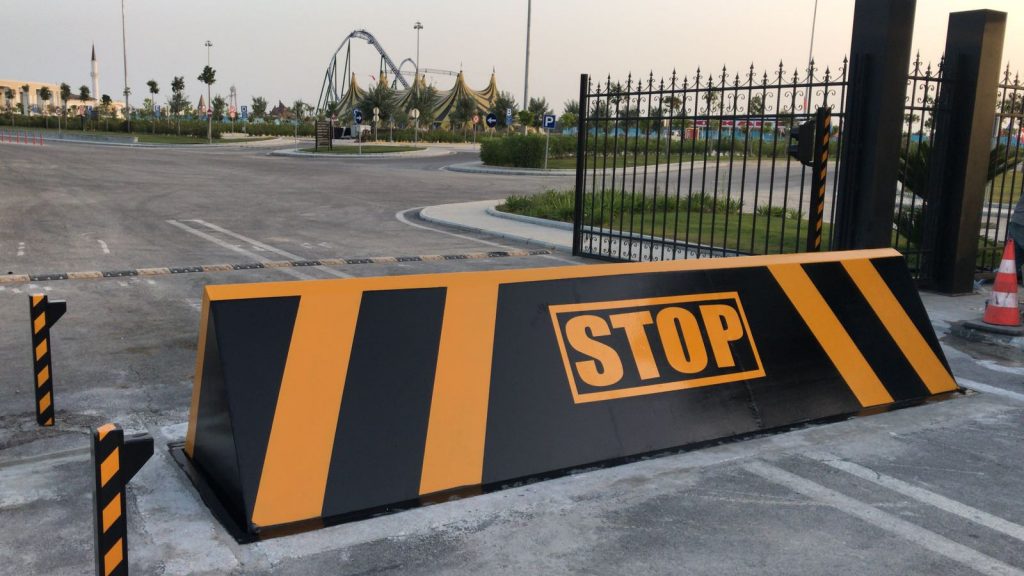

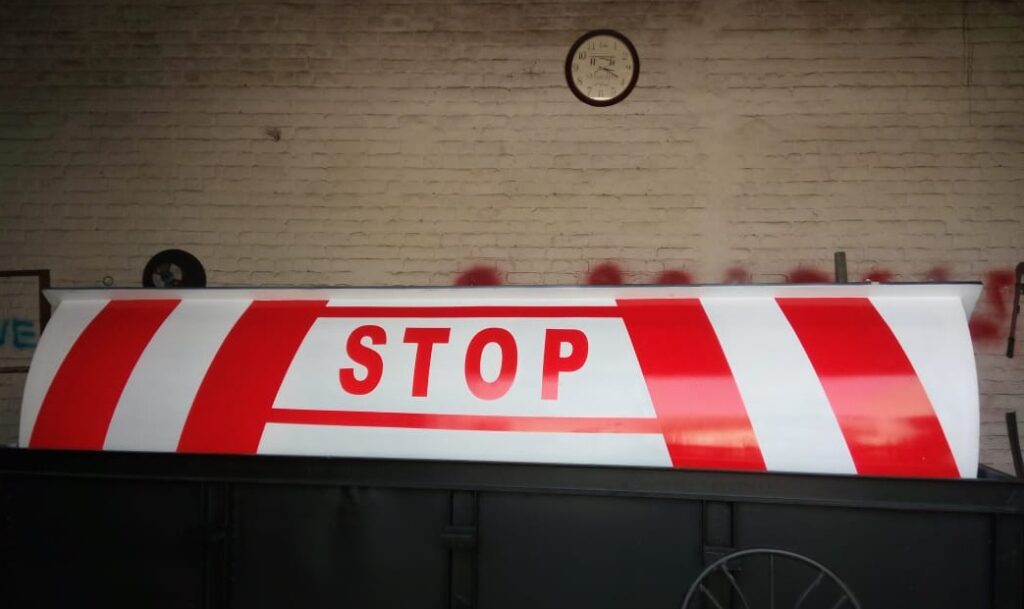

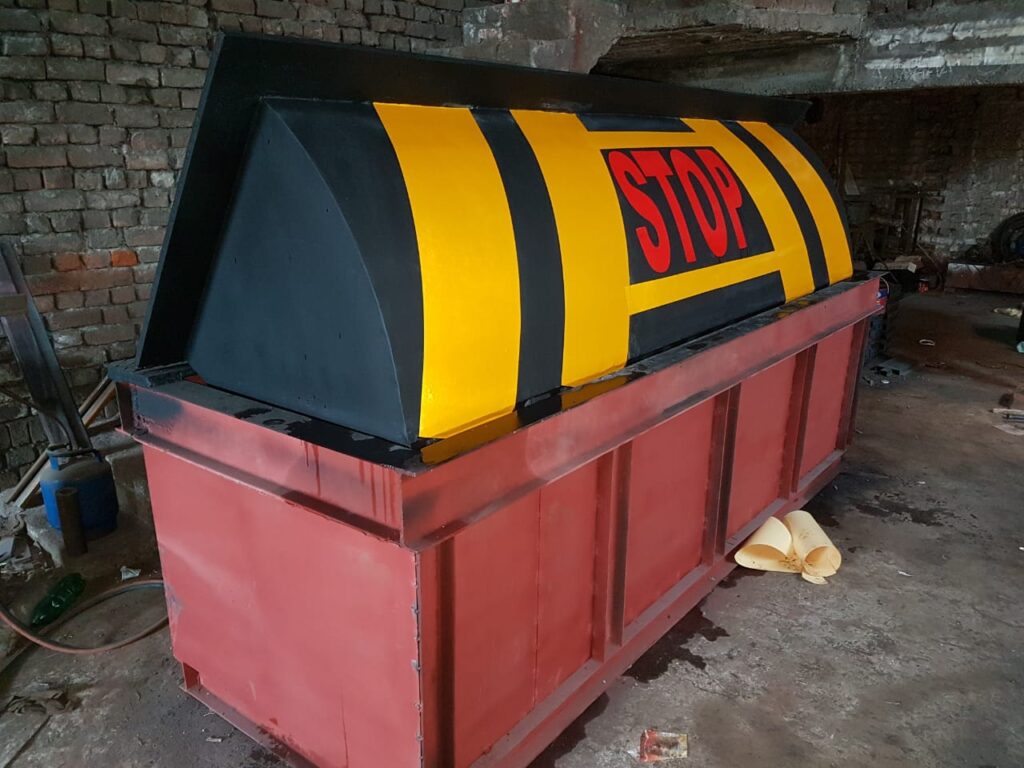

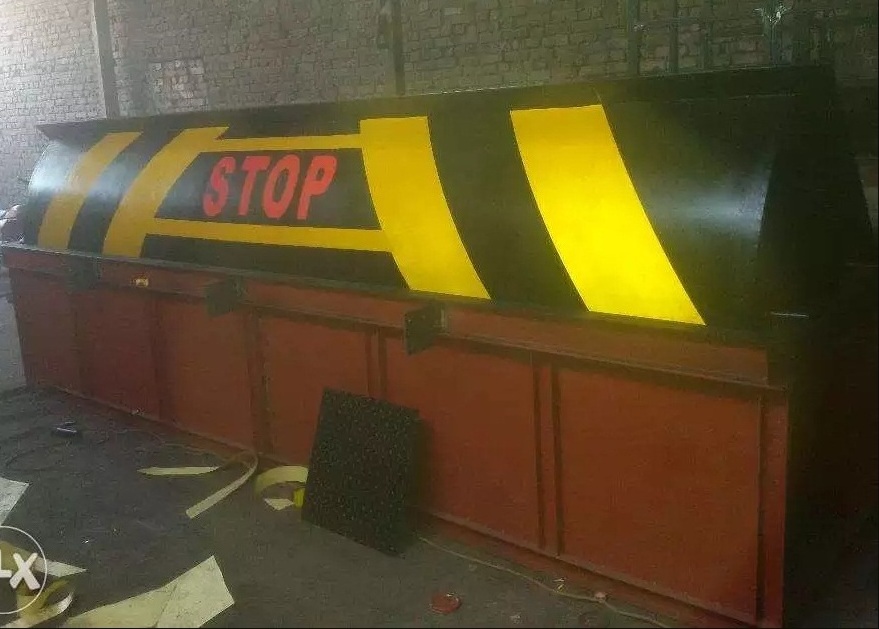

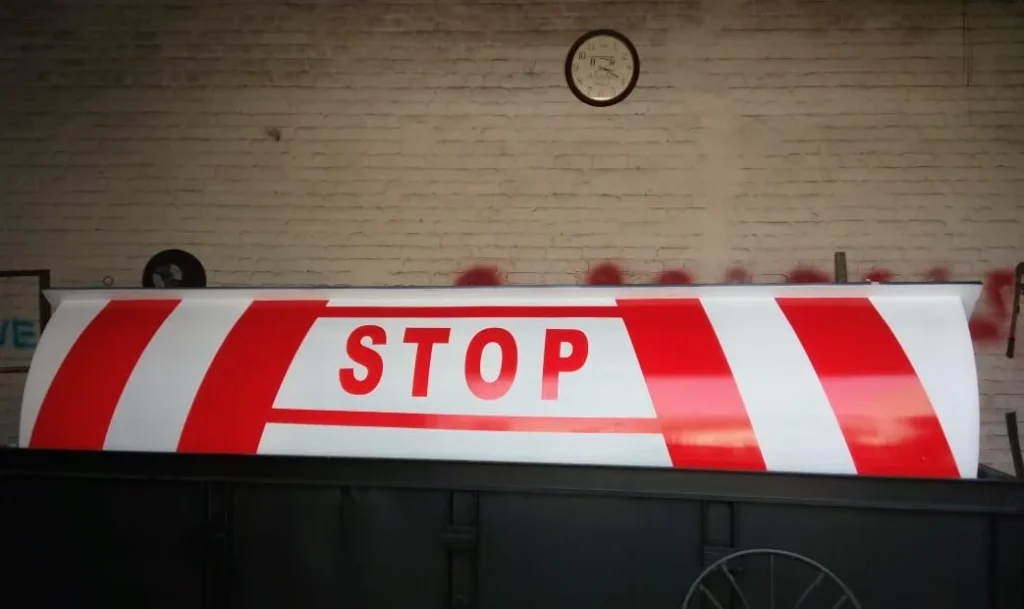

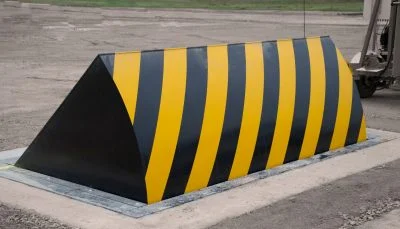

D-Type Hydraulic Road Blocker

D-Type Hydraulic Road Blocker gives a high level of security against not permitted vehicle access, our company design this especially for entrance points that have a threat of vehicle attack or for the ones that have high security procedures.

Road Blocker like D-type hydraulic commonly used in CHECKPOINTS,PRISONS, AIRPORTS,GOVERNMENT AGENCIES, EMBASSIES, MILITARY BASESTATION, BANKS, INDUSTRIAL AND CORPORATE SECTORS, PORTS, PARKING LOTS and as per consumer requirements.

Dimensions                        3 x12 x 3ft

Starting Height                 750mm

Power                                   K-4, K-8, K-12 rated

Transformer                       110-120VAC, 50-60 Hz, or 220-240VAC, 50 Hz (optional)

Solid                                      Mild Steel Electrostatic powder coated

Temperature                     -10 to +55°C

Humidity                             95% Max.

Controlling Unit               Micro Controller

Mode                                    Manual and Automatic

Colors                                   Color design according to customer’s request

Electric Power                   Stabilized 220VAC, 5A, 1 phase

Frequency HZ                    50-60 Hz

Voltages                              24VDC

Solenoid                              24 VDC, 2A each

No. of Solenoid                 2

Controlling Unit               Micro Controller

Controller                           Made in Taiwan

Limit Switches                  15A / 250V AC, Brand: C-Lin

Relays                                   24V DC / 220V AC (8 pins or 11 pins configuration) Brand: C-Lin

Relay Base                          Standard 8pins or 11 pins, Brand: C-Lin

Power Adapter                 Standard Power Adapter 24V DC Output

Motor

  •  3-Phase Induction motor

 Hydraulic pump

  • Speed: Rated 1800 RPM,
  • Max 3000 RPM
  • Min 400 RPM

Gear Type

  • Work Pressure: 100 bars

Pump

  • Single Gear Pump Pemex = 250 bar (3500 psi)
  • Rated Speed: 1800 rate per minute

Modular Relief Valves

  • Model: MRV-03 Pemex: 4500 psi Mac flow: 21.13 gpm
  • Functioning Temp: 12-70 C’

Modular Check valves

  • Pemex = 3625 psi
  •  Operating Temperature: 15-70 C

Solenoid operated  Valve

  •  DEKEMA DGG-01-3660N-50
  • We also offer signal with access control and a large variety of customization as well.
  • The best part of our road blockers are that they are cost efficient and we give top class maintenance services as well.
  • Feel free to get in touch with us regarding the detailing and quotations.
